Are you tired of dealing with leaky shower floors or unsightly grout lines? If so, it may be time to consider building a shower pan yourself. Building a shower pan can be a cost-effective and rewarding DIY project, and it's not as difficult as you may think.

In this article, we'll walk you through the basics of how to build shower pans from scratch. We'll cover everything from selecting the right materials to ensure proper drainage and waterproofing techniques. Whether you're renovating your bathroom or starting from scratch, by following these steps, you can create a custom shower that meets all your needs and preferences.

So roll up your sleeves and get ready to learn how to build shower pans like a pro! With just a little bit of know-how and some elbow grease, you can create a beautiful and functional shower that will last for years to come.

Planning Shower Layout

When building a shower pan, it's important to plan the layout before starting any work. First, you'll need to determine the size of your shower opening and the wall lengths. This will help you decide on the best tile layout and whether you want to use 12-inch tiles or smaller tiles for your walls. Once you've selected ahead, don't forget to make small alterations in case full tiles won't fit at the inside edge.

YouTube video about Planning Shower Layout

Additionally, consider whether you'll be installing shower doors or glass block for privacy. If you're going with shower doors, make sure to measure and pick the right door based on your shower opening. You should also keep in mind neighboring bathroom and existing plumbing (copper water lines, sewer drain lines) when planning where your shower will be located. Make sure that your shower is backed by a common wall and located close enough to sewer/drain lines so that required distance can be achieved to accomplish hook-ups.

Finally, when installing a cement board over the subfloor, make sure that it's properly installed and that your shower drain is in place. The drain water vent should also be accounted for when designing your layout. By taking these necessary steps when planning out your shower layout, you can ensure that everything runs smoothly during construction and prevent any future issues after installation is complete!

Transform Your Sidewalk with the Art of Curbing

If you're looking for a way to change up the look of your sidewalk, consider using curbing. Not only does it add visual appeal, but it also helps to keep grass and weeds from creeping onto your walkway. Installing curbing is a simple process that involves packing mortar into a form and then using a screeding tool to obtain crisp edges. Once the mortar has set, you can remove the form and use a wood float to smooth out any rough spots.

To begin the installation process, start by laying down a folded liner where you want your curb to go. This will help protect your grass or other landscaping from being damaged by the mortar. Then, mix up some mortar and pack it into a curbing form. Use the screeding tool to smooth out the surface and create crisp edges before allowing it to set. Once everything is dry, remove the form and use a wood float to make sure all rough spots are smoothed over. With these simple steps, you can transform your plain old sidewalk into an eye-catching feature in no time!

Improve Your Drainage System with these Simple Adjustments

If you are building a shower pan, you want to make sure that your drainage system is working properly. The first step is to choose the right shower drain. You need a drain that can handle the amount of water that will be flowing through it. Make sure that the drain has enough capacity to handle the flow of water from your showerhead. Once you have chosen the right shower drain, it's time to focus on the floor tile and mortar sets.

Old fashioned cassette player placed in shabby garage near old industrial equipment

The floor tile needs to be installed properly in order for your drainage system to work effectively. Tiles should be installed in a way that allows water to flow toward the shower drain. The slope towards the shower drain should be at least ¼ inch per foot of floor space. Additionally, mortar sets must be installed correctly so they don't create any blockages in your shower drain. Following these simple adjustments will ensure that your drainage system is working properly and prevent any potential issues down the road.

Bending the Line: A Guide to Achieving a Perfect Curve

When it comes to building shower pans, one of the most challenging tasks is achieving a perfect curve. But fear not, with the right tools and techniques, bending the line can be a breeze. To start, you'll need to create curved curbs by cutting hardboard siding into strips and attaching them together with toe-screwed 2x4s. For straight curbs, use permanent 1-inch thick screed boards.

Flexible ballerina performing back bend on white background

Next, you'll need to install a vinyl liner that extends 12 inches up the interior walls and over the top of your curved curbs. Pro tip: use toe screws instead of staples for a secure fit. Once your liner is in place, it's time for mortar work. Make sure to smooth out any bumps or lumps in your mortar bed before installing your copper plumbing and drain water lines.

Finally, it's time to lay down excess hardboard and build up the base layer of mortar around your curved curbs. With patience and attention to detail, you can achieve a perfect curve that will make your shower pan stand out from the rest. Remember to take your time and don't rush through this important step in building a beautiful and functional shower pan!

Discover the Fascinating Science Behind Mortar Shower Floors

Building a shower pan requires a lot of attention to detail, especially when it comes to creating the subfloor. The mortar subfloor is an essential element that provides stability and support to the shower walls. This layer called the sloped fill slants towards the special two-piece clamping-type drain made specifically for this purpose, which you can find in any home center. A mortar bed shower floor has an average width of 3 feet and a 1-inch thickness.

YouTube video about Discover the Fascinating Science Behind Mortar Shower Floors

To make sure that your shower pan is waterproof, you need to install a durable CPE (Chlorinated Polyethylene) membrane or vinyl liner on top of the sloped fill layer. This waterproof membrane prevents shallow pan water from seeping into the bathroom floor and causing damage. Then, a second layer called expanded galvanized metal lath is installed over the membrane. This layer will help anchor the top layer of mortar that will create a slope towards the weep holes located in the special two-piece clamping-type drain.

Finally, after installing sloped mortar bed and sloped fill layers, you'll need shower curbs for safety reasons. These curbs aren't bordered by any other elements such as walls or doors, so it's important to have well-made curb buys that are high enough to prevent water from spilling onto your bathroom floor. If you're interested in building a larger version of this type of shower pan, additional information is available online or at your local home center. The science behind building these beautiful and functional types of floors is truly fascinating!

How to Apply Mortar to Your Lath Surface like a Pro!

Applying mortar to your lath surface is an important step in building shower pans. To begin, snap chalk lines on the cement board making sure to create a sloped fill of at least 1 inch per foot towards the drain. Pile mortar onto the surface with a trowel and use a steel trowel to pack it down.

YouTube video about How to Apply Mortar to Your Lath Surface like a Pro!

Next, locate any high or low areas on the surface and fill depressions with more mortar. Smooth out any high spots with the steel trowel and be sure to keep your tool sharp edges clean for a cleaner tiling job.

Repeat this process until you have covered the entire lath surface with packed mortar. With these tips, you'll be able to apply mortar like a pro and create a solid base for your shower pan that will last for years to come.

Unlock the Secrets of the Perfect Layout: A Must-Read Guide

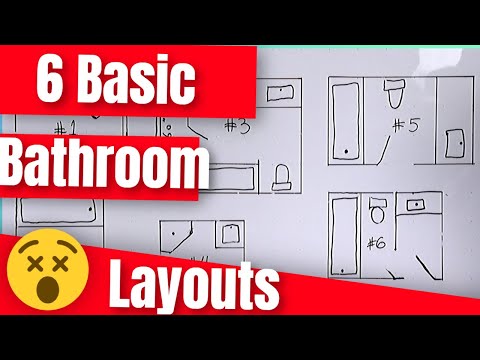

YouTube video about Unlock the Secrets of the Perfect Layout: A Must-Read Guide

Shower pan installation can be a tricky process, but with the right layout, you can make it a breeze. A perfect layout ensures that you have the correct slope for proper drainage and allows for easy case tile installation. Follow these steps to unlock the secrets of the perfect layout and take your shower pan installation to the next level.

Unleash Your Inner Creator and Design Your Dream Floor

When it comes to building a shower floor, there are several design options available that can help you unleash your inner creator. To start, consider using mortar forms to create the perfect slope for your shower. This technique involves using a 65-inch arc and a curved form board to ensure that water drains properly towards the drain.

Crumpled blanket in dark room at sunset

Once you have your slope in place, it's time to add some personality to your shower floor. Consider adding mosaic tiles or custom designs using an 8d nail to create intricate patterns. With these design options available, building a beautiful and functional shower floor has never been easier. So go ahead, unleash your inner creator and design the shower of your dreams!

Basics of Tiled Shower Pans

Interior of light bathroom with toilet near bathtub with shower and curtain near counter with shelves with towels and containers and decorative objects near white tile

A shower pan, also called a shower basin or floor, is an essential component of a tiled shower. There are two main types of shower pans: pre-fabricated polyurethane or fiberglass pans and mortar-based pans. Pre-fabricated pans offer great convenience as they're ready to install, however, they may not provide maximum creativity when it comes to customizing the size or shape of your shower. A mortar-based pan requires more time and effort to construct but allows for more flexibility in design. Regardless of the type chosen, it's important to ensure that the surrounding materials are waterproofed to prevent leaks and water damage.

1. Equipment / Tools

To build a shower pan, you will need the following equipment and tools: straight tile trowel, notched trowel, rubber tile float, wet tile saw, rail tile cutter, tape measure, mortar mixing tray, garden hoe, caulking gun, cordless drill and utility knife.

The straight tile trowel is used to spread the mortar evenly on the surface. The notched trowel creates ridges of an even depth that helps to lay tiles uniformly. The rubber tile float is used to press the tiles into place and remove any excess grout. Wet tile saws are necessary for cutting tiles precisely. Rail tile cutters are more affordable alternatives for cutting straight lines in large volumes of tiles. Tape measures ensure that dimensions are accurate before making cuts. A mortar mixing tray is used to mix water and cement together easily. The garden hoe can be utilized to help mix large batches of cement without causing strain on your back muscles. Caulking guns make it easy to apply caulk around the base of your shower stall once it's been installed while cordless drills with a paddle attachment can assist in mixing the cement solution thoroughly. Lastly, a utility knife will come in handy when trimming down tiles that need to fit into tight spaces or odd angles.

2. Block Between the Studs

When building a shower stall, it's important to think about the space between the studs. This is where you'll want to add obstruction blocking, which can be made from cut two-by-six lumber. The obstruction blocking will provide extra support for the shower pan and prevent any sagging or shifting over time.

Make sure to also use waterproofing material on top of the obstruction blocking before installing your one-by-six lumber base for the DIY shower pan liner. This will help prevent any water damage in the future and ensure that your shower pan lasts for years to come. Keep reading for more tips and tricks on how to build a proper shower pan!

3. Mix the Mortar

Mixing the Mortar

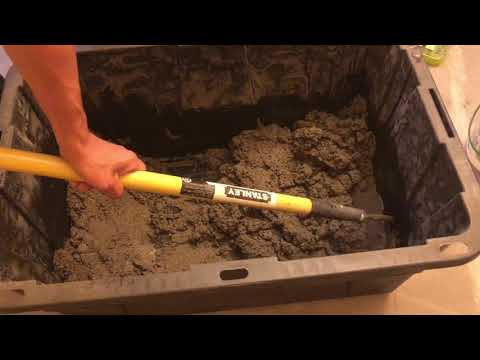

One of the essential steps in building a shower pan is mixing the mortar. To do this, you will need a mixing tray mix and a garden hoe. Begin by pouring water into the mixing tray, then add the mortar mix slowly while stirring it with the garden hoe. Keep adding water and mixing until you achieve a stiff peanut butter-like consistency.

Ensure that you mix thoroughly to avoid any lumps or inconsistencies in your mortar mixture. This process will take some time, so be patient and keep stirring until you get the perfect consistency. Once done, your mortar is ready to be applied to your shower pan base for tile installation.

Frequently Asked Questions

How to build a shower pan on a concrete floor?

To build a shower pan on a concrete floor, you will need to create a slope using mortar and waterproof membrane, then install the drain and tile over the surface. It's important to follow proper guidelines and use quality materials for a durable and leak-free shower.

What materials are used to make a shower pan?

Shower pans can be made from different materials including fiberglass, acrylic, and tile. The choice of material depends on factors such as budget and style preferences.

What is the best way to build a shower pan?

The best way to build a shower pan is to use a pre-fabricated shower pan or create one using waterproof materials such as PVC liner, mortar, and cement backer board. It's important to ensure proper slope and drainage for effective water flow.

How to make your own shower pan?

To make your own shower pan, you will need to create a slope using cement and a waterproof membrane. Then, tile over the top for a finished look.
